Low Abrasion Ceramic Beads Blasting Media B120 63-125μm B205 0-63
μm for Metal Surface Finish
1. Product Description of Ceramic Beads Blasting Media
Ceramic beads is one popular and cost-effective blasting media,it
is able to replace steel shots where ferrous
contamination is prohibited,also can replace glass beads where one
clean working condition is required.
Ceramic Beads selects the high quality zircon sand as main
material,then fused in arc furnace under high
temperature over 2000 ℃,finally made into different beads by
special technology.
It has wide specification from B20 to B505,which can match with
most blasting machines no matter in air
blasting or wet blasting etc.
2. Main Technical Data of Ceramic Beads
| Commodity | Main Chemical Index | Main Physical Index |
Ceramic Bead Blasting | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size of Ceramic Beads |
| B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.053-0.106mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm |
| B100: 0.106-0.180mm | B505: 0.000-0.030mm |
| Remark: Special specification can be customized |
3. Main Features of Ceramic Beads
High hardness,smooth surface,good sphericity
No metallic contamination
Low abrasion rate
No hidden dangers of silicosis
Low solid waste disposal cost
Outstanding reproducibility of surface finish
More consistent and satin balsting effect

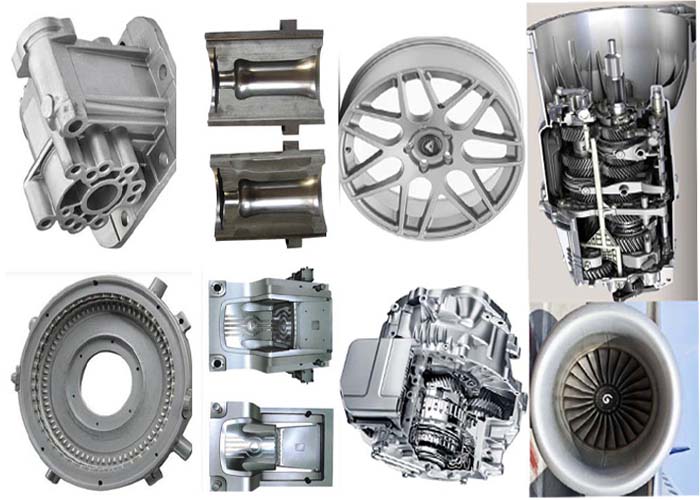

4. Main Applications of ceramic beads
Surface cleaning such as descaling, desanding and
derusting,deburring etc
Surface finish for 3C products such as its metal surface,built-in
parts,accessories etc
Surface finish for artificial joint,medical instruments,glof head
etc
Surface cleaning for stainless steel, light alloys such as
magnesium alloy,titanium alloy,aluminum alloy etc.
Surface preparation before plating or anodizing
Shot peening for avaiation and automotive industries such as
springs,gears and
other components.
5. Why Choose us?
Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning
under high temperature,which provides
higher clearliness and ensures it to be work normally in humid
weather;
Stable Quality
Stricter quality control system,products is traceable in every
steps from the raw materials to the finished products.
Products will be sampled and tested again before delivery even in
small quantity.
More competitive price
Our plant is located in mountain area,which provides lower cost in
environmental protection and workers’ salary,
then product’s price is more competitive than the one of other
plants.
More flexible corporation model
No matter you are the distributor or final users,we will provide
the more flexible payment term and corporation model.
Famous CIients
Samsung Electronics,Ujiden,Foxconn etc
