Breakdown Rate 1.2% Zirconium Silicate BeadsCeramic Blasting Media
JZB40 JZB60 JZB80 JZB120
1. Product of Description
Ceramic beads selects the high quality zircon sand as main
material,then fused in high temperature over
2000 degrees,then screened into different microbeads according to
special technology.
Ceramic beads has wide specification from B20 to B505,which can
match most of the blasting equipment.
It contains 60-66% ZrO2,so it is also called as zirconium sand.It
has dense crystal structure,high hardness
and low break-down rate,which can replace glass beads where one
clean working condition is required.
It is one round,solid blasting media,most suitable for surface
finish of metal parts due to its smooth surface
and good elasticity and high density.
Ceramic beads has lower breakdown rate,there is little dust
generated in the whole blasting process,
It will ensures the worker to escape the hidden danger of
silicosis. It is one clean blasting media.
2. Main Technical Data
| Commodity Name | Chemical Index | Physical Index |
| Ceramic Blasting Beads | ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13% | Vickers Hardness ≥700 HV |
| True Specific Gravity ≥3.85 g/cm3 |
| Bulk Density≥2.3g/cm3 |
| Particle Size | B20: 0.600-0.850mm |
| B30:0.425-0.600mm |
| B40:0.250-0.425mm |
| B60:0.150-0.300mm |
| B80:0.125-0.212mm |
| B100:0.106-0.180mm |

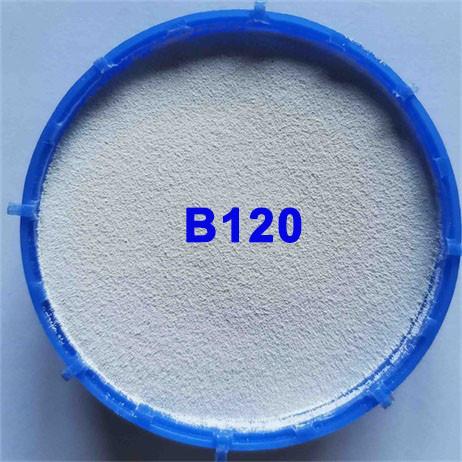

| B120:0.063-0.125mm |
| B150:0.000-0.125mm |
| B170:0.045-0.090mm |
| B205: 0.000-0.063mm |
| B400: 0.030-0.063mm |
| B505: 0.010-0.030mm |
| Special specification can be customized |
3. Main Features of Ceramic Beads:
No ferrous contamination to the treated parts
Low breakdown rate,no hidden danger of silicosis
Clean and bright blasting condition
More uniform and stable blasting effect
High blasting efficiency,low production cost

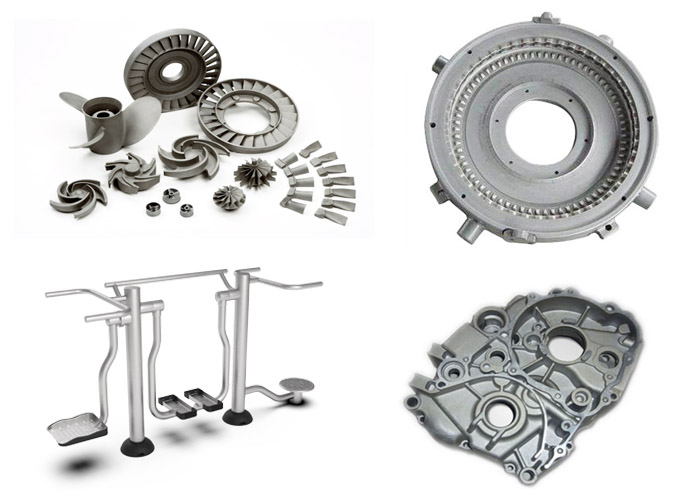

4. Main Applications:
Surface finish for metal surfac,light alloys,stainless steel
parts....
Surface cleaning for metal pipes,glass-bottle molds,tire-molds,die
casting...
Surface cleaning for heat-treated parts,mechanical parts,electronic
components...
Surface preparation for electroplating,anodizing etc.
Deburring or descaling for plastic parts,rubber parts,mechanical
parts etc.
5. Main Package of Ceramic Blasting Media
25kg barrel+Pallet
2*12.5kg barrel+Carton+Pallet
Special package can be customized.
6. Why choose us?
Professional manufacturer of ceramic beads,annual output
over3000mts
Professional sales and technical team,providing 7*24hrs services;
Strict quality control system,quality can be traced in every step
Double-sampling system,all the cargo will be sampled again before
shipment even for one small sample
Stable supplier of Foxconn,Samsung Electonics...
Quick response and prompt delivery;
Flexible payment term,T/T,L/C,paypal is also acceptable
Free sample is available.
