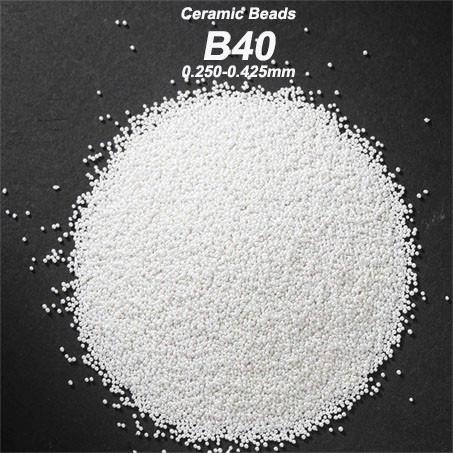

60-66% ZrO2 Zirconia Beads Ceramic Blasting Media Size B40
0.250-0.425mm B60 0.063-0.125mm for Injection
1. Product Description of Ceramic Blasting Media
Ceramic beads is also called as ceramic blasting media,it is one
white solid beads, with more than 700HV
hardness.Ceramic Beads selects the high quality imported zircon
sand as the main raw material,then fused
in an arc furnace under high temperature over 2000 degrees.
Ceramic beads has a remarkable characteristics of high hardness,
good elasticity and high sphericity,
especially suitable for the metal surface finish. Meanwhile,it also
has a dense crystal structure and strength,
which is not easy to be broken in the whole process of
sandblasting, and generate little dust, then provide a
clean and bright blasting environment, also ensuring that operators
are far away from the hidden danger of
silicosis, and reducing the cost of solid waste treatment.
Therefore, ceramic beads is one efficient and environment-friendly
blasting media.
2. Main Technical Data of Ceramic Blasting Media
| Commodity Name | Chemical Index | Physical Index |
Ceramic Beads | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% | Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting |
|
|
| Specification For Ceramic Blasting Media | Specification For Ceramic Shot Peening |
| / | Z850: 850-1180μm |
| B20: 600-850μm | Z600: 600-850μm |
| B30: 425-600μm | Z425:425-600μm |
| B40:250-425μm | Z300: 300-425μm |
| B60:150-300μm | Z210: 210-300μm |
| B80:125-212μm | Z150: 150-210μm |
| B100:106-180μm | Z100: 100-150μm |
| B120: 63-125μm | / |
| B150:0-125μm | / |
| B170: 45-90μm | / |
| B205: 0-63μm | / |
| B400: 30-63μm | / |
| B505: 10-30μm | / |
| Remark: Special specification can be customized. |
3. Main Features of Zirconia Ceramic Blasting Meida
High hardness, good impact strength and high mechanical strength
Low break-down rate and little dust generated to provide one more
uniform blasting effect
Wide particle size range to match most sandblasting equipments
Excellent elasticity for high impact energy
No contamination or damage to treated parts and blasting machine
4. Main Applications of Ceramic Blasting Media
Surface pretreatment: Ceramic beads can be used as blasting media
before painting, which can remove
the rust on the surface of work-pieces and form a certain surface
roughness,finally improve the adhesion
of plastic powder and paint film;
Deburring: for machined parts,ceramic beads can remove burrs on the
surface, making the workpiece more
beautiful;
Oxide-scale and oil- stain removal: For castings or heat treated
work-pieces, ceramic blasting media can
remove its oxide-scale and oil stain to improve the surface finish
and restore the metal’s natural color;
For stainless steel parts, different reflections and matting can be
achieved;
For glass bottle mold and tire mold, ceramic sand can effectively
remove residual rubber and glass on
the mold surface, thus improving the precision of mold size.
