Blasting media Difference of Glass beads, Ceramic beads and steel
shot in sandblasting
DESCRIPTION

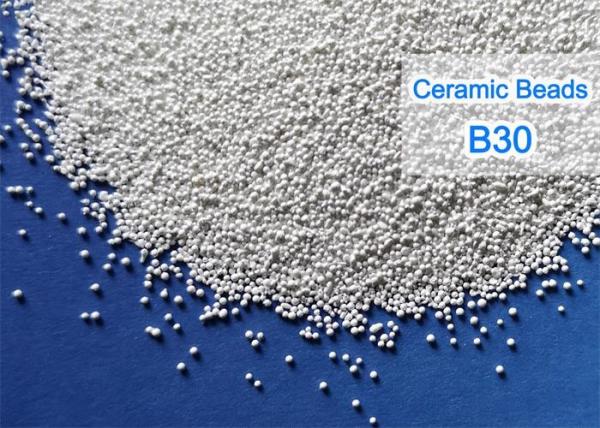

Ceramic blasting media is also called Ceramic beads, ZrO2 62-68%,
Bulk Density 2.3g/cm3, HS code 691410.
Ceramic beads is of high impact properties coupled with good
hardness. It is spherical and of smooth surface,
much lower roughness than glass beads and steel shot, leading
beautiful satin shine finish on the blasting work
piece and easier to clean.
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 | Special sizes can be customized |
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 |
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
FEATURES
1. The density of the ceramicbeads is between glass beads and steel shot, and
with high hardness, can be used to fill the upper and lower limit
of the strength of glass beads and steel shot.
2. The ceramic beads is light, but its hardness is high, which is very suitable for the strengthening and forming of metal
blasting sand such as titanium alloy, aluminum alloy and high
temperature alloy.
3. Ceramic beads is not deformed in the process of circulation and wear low, which can ensure the consistency of the surface sandblasting effect during mass production.
4. Ceramic beads is spherical and has smooth surface and low loss of equipment.
5. Ceramic beads has a wider range of particle size and can be used
in matching with various types of sandblasting machines to meet more application requirements.

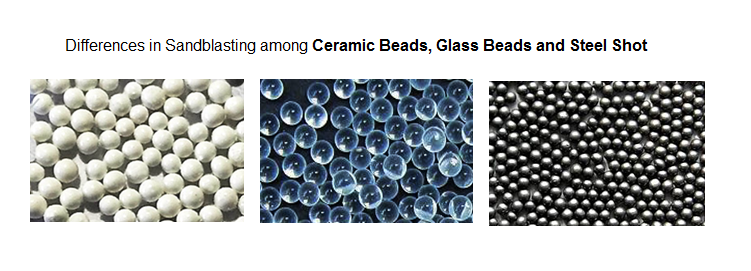

| Parameter | Ceramic beads | Glass beads | Steel shot |
| Main ingredient | ZrO2+SiO2 | SiO2+NaO2 | C+Si+Mn+S+P |
| Vickers hardness | ≈700HV | ≈560HV | ≈700HV |
| Rockwell hardness | ≈60HRC | ≈46HRC | ≈60HRC |
| True density | 3.85g/cm3 | 2.6 g/cm3 | 7.8 g/cm3 |
| Particle size interval | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm |
| Particle shape | spherical | spherical | Fillet |
| Dust pollution | Very small | Big | in |
| Metal pollution | no | no | in |
| Cycles | repeatedly | 1-2 times | repeatedly |
| Service life | high | About ceramic sand 1/25 | high |
| power consumption | low | low | high |
| Equipment wear | low | low | high |
| Sandblasting effect | High finish and no discoloration of the workpiece | High finish and white workpiece | Low finish and blackened workpiece |
APPLICATIONS
Sandblasting finishing
- 1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile
phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective
surface, on alloy workpiece such as mobile phone to achieve
different reflection or matte.
- 2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
- 3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting
finishing
Other applications in
Sandblasting cleaning
Casting and forging parts, welded parts, heat-treated parts -
Sandblast Cleaning
Pipeline - Sandblast Cleaning
Molds - Sandblast cleaning
Pretreatment
Electroplating, painting, anode-Surface Pretreatment
Hardware parts - Sandblasting to improve lubrication conditions
Shot peening
Aerospace industry-Shot Peening
Automotive industry-Sandblasting reinforcement/ Shot Peening
Machinery, Medical Instrument - Sandblast finishing/shot peening
CONTACT US
No matter you’re the end users, blasting service suppliers,
sandblasting equipment dealers or ceramic blasting media and other
blasting abrasive distributors, welcome to contact us. More details
of ceramic blasting beads, updated prices and samples will be
available.
