B100 Ceramic Blasting Media For Machinery / Medical Instrument
Sandblast Finishing
DESCRIPTION OF CERAMIC BLASTING MEDIA
Ceramic Bead is spherical sandblasting media made by the electric
fusion of zirconia sand at 2000 ℃ temperature .
Ceramic bead blasting is used for surface treatment cleaning and
finishing on metallic parts surfaces, like descaling, derusting,
deburing, and deflashing, to remove layers of foreign material from
metallic substrates and excess surface material from machined or
molded parts.
SPECIFICATION OF CERAMIC BLASTING MEDIA
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
PRODUCTION PROCESS
FEATURES
(1) Surface treatment consistency
Consistency of metallic light, the blasting strength is as good as
steel balls processing effect, much higher than the glass beads
strength. And can achieve adequate metal depth.
(2) Environmental Friendly
Low crushing rate, no dust, uniform particle size, high wear
resistance, re-elasticity, no hidden danger of silicosis, it is
harmless to the human body.
(3) Low equipment loss
Ceramic sand has smooth surface, high sphericity, good elasticity
and low wear, can protect the equipment, whether it is dry spray or
wet spray.

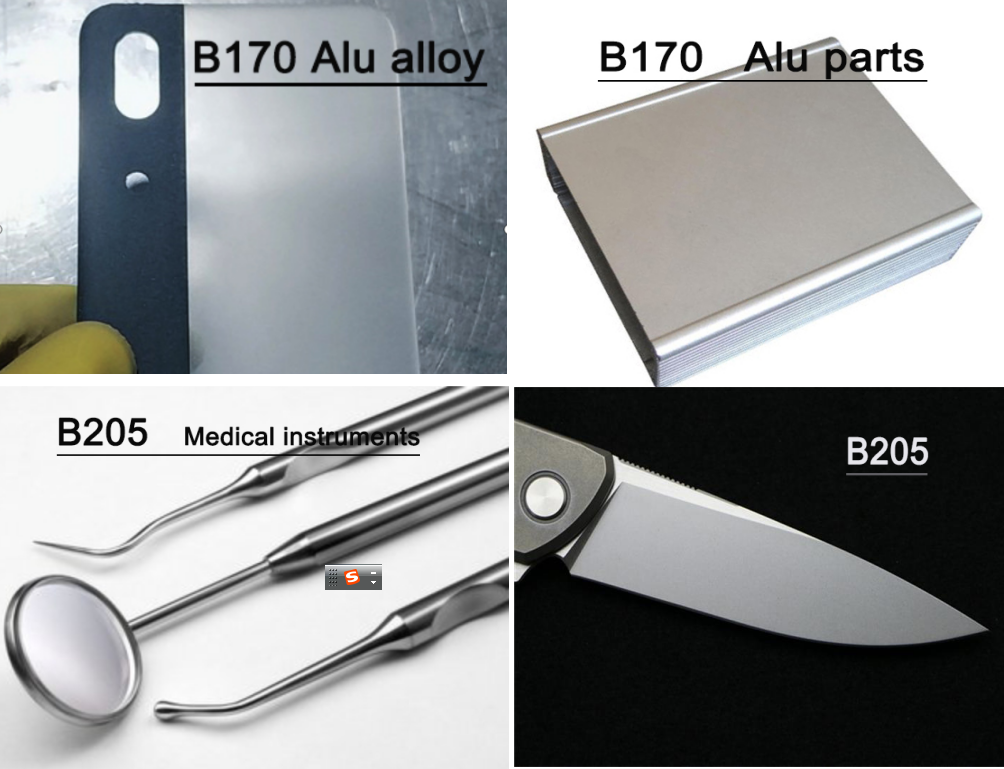

APPLICATION
Machinery, Medical Instrument - Sandblast finishing
Ceramic beads can be used as blasting medium for medical equipment,
can achieve effect of micro-burr removal, make the corners of the
two surfaces appear small rounded corners, the surface is smooth
and non-reflective.
Other application like Sandblasting finishing, Surface cleaning, Surface Pretreatment and Renovation of old work parts etc..
APPLICABLE EQUIPMENT
Suitable sand blasting machine:
Manual sand blasting machine, Automatic sand blasting machine,
Open type series of sand blasting machine, and Blasting room
series.
