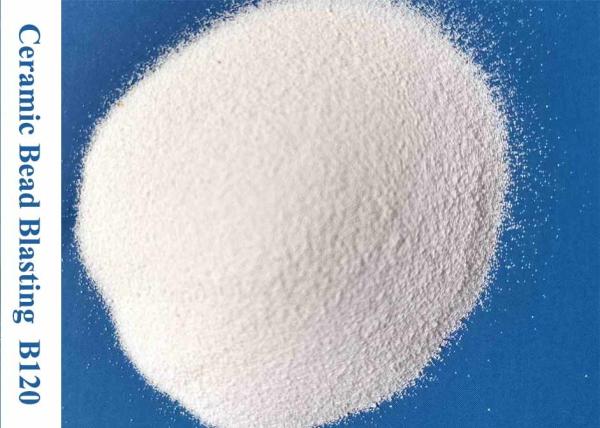

Zirconium Silicate Bead Ceramic Blasting Media B120 63-125μm for
Golf-head Surface Finish
1. Product Description of Ceramic Bead Blasting
Ceramic Beads has lower break-down rate,which will generate little
dust in whole blasting process,so it is
one clean blasting media.
It will last twenty to thirty times longer than the one of glass
beads, then it is also one cost-effective abrasive.
If clean working condition and non ferrous contamination are
concerned, ceramic beads is the best choice.
2. Main Technical Data of Ceramic Beads
| Item | Ceramic Bead Blasting |
| Chemical Index | ZrO2 60-66% |
| SiO2 25-30% |
| Al2O3 7-13% |
| Vickers Hardness | ≥700 HV |
| True Specific Gravity | ≥3.85 g/cm3 |
| Bulk Density | ≥2.3g/cm3 |
| Particle Size | B20:600-850μm |
| B30:425-600μm |
| B40:250-425μm |
| B60:150-300μm |
| B80:125-212μm |
| B100:106-180μm |
| B120:63-125μm |
| B170:45-90μm |
| B205:0-63μm |
| B400:30-63μm |
| B505:10-30μm |
| Special particle can be customized |
3. Main Applications of Ceramic Bead Blasting:
Surface Finish for the metal surface and built-in parts of 3C
products
Surface finish for the accessories of 3C products such as USB,power
bank etc.
Surface finish for light alloys: aluminum alloy, magnesium alloy,
titanium alloy etc.
Surface preparation for stainless steel in food industry;
Surface cleaning for various molds: robber molds,plastic
molds,glass-bottle molds,tire molds,die casting etc;
Surface strengthening for mechanical parts, surgical instruments,
golf heads, artificial joints, gears, glasses
frame etc.
Anti-fatigue treatment and strengthening treatment in turbine
industry
Anti-fatigue and stress-relief for suspension spring and engine for
in automotive & aerospace industry etc.
Deburring for circuit board in electronic industry
4. Usage Guidelines For Ceramic Bead Blasting Media
Please open 1/3 to 1/2 vest of dust collector When using ceramic
beads for the first time,
Since ceramic beads need the wind to be recycled in the blasting
process.
Ceramic beads maybe used in wet and dry blasting equipment, both
airless and compressed air.
Please ensure the blades is covered by sufficient ceramic beads
when used in airless blasting equipment
to avoid the higher breakdown rate.
When used in airless blasting equipment, sufficient media coverage
of the blades must be maintained to
avoid excessive media breakdown rates.
Ensure blasting equipment contains a good operating mix if removal
of millscale / discolouration is required.
5. Packages of Ceramic Beads:
25kg barrel(12L)+ pallet
2*12.5kg barrel+Pallet
Special package can be customized.
