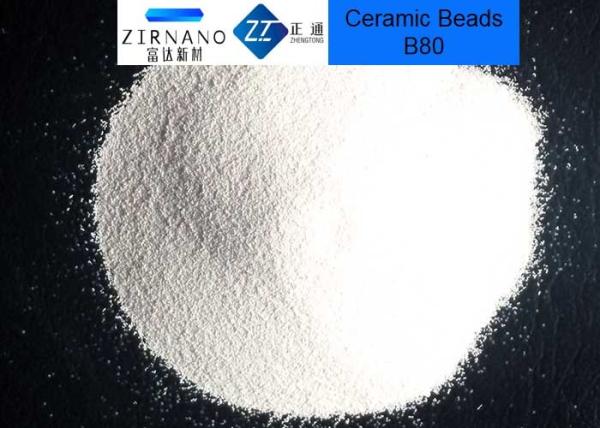

No Silicosis Zirconia Ceramic Beads Zirconium Sand B80 B100 for
Sandblasting
1. Product Description
Ceramic Blasting beads is also called as Zirconia ceramic beads,it
is widely used as one blasting
media in various application as well as glass beads and steel
beads. Here is the simple compration
chart for the aboved three blasting beads:
| Item | Ceramic Blasting Beads | Glass Beads | Steel Beads |
| Chemical Index | ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13% | Si02:>65%,Na2O<14.0%
Ca0>8.0%,Mg0>2.5% | C 0.8-1.2%
Si 0.45-1.50%
Mn 0.60-1.20% |
|
|
| Vickers Hardness | ≥700 HV | ≥560HV | ≥700 HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥2.5g/cm3 | ≥7.8 g/cm3 |
| Particle Size | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm |
| Usage | Blasting Media | Blasting Media | Blasting Media |
| Ferrous Contamination | No Ferrous | No Ferrous | Ferrous |
| Dust Pollution | Little | Large | Medium |
| Recyclable Times | Multiple | One time or twice | Multiple |
| Power consumption | Low | Low | High |
| Service Life | Long | 1/25 of ceramic beads | Long |
| Equipment Wear Rate | Low | Low | High |
| Blasting Effect | High finish
No discoloration | High finish
White discoloration | Low finish
Black discoloration |
Compared with the glass beads,ceramic beads has long service life,
which is about 25 times as the
one of glass beads, it will also achieve better visual effect and
texture as well as lower toughness
compared with the one treated by glass beads.
Compared with the steel beads, ceramic beads are able to be applied
where ferrous contamination
is not allowed.
2. The specification of Zirconia Ceramic Beads Zirconium Sand:
| Particle Size |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
3. Product Features of Zirconia Ceramic Beads Zirconium Sand
High hardness and High Durability
Zirconia Ceramic Beads has good spherical and high hardness,it is
not easy to be broken in
the blasting process, then it is more durable, it will offer at
least 20-30 times longer service life
compared with the one of glass beads.
Consistent Blasting Effect
Its lower breakdown rate ensures longer refuel interval,then the
beads in the blasting equipment
is more stable and consistent, then it finally offers more
consistent blasting effect with lower surface
toughness compared with other blasting media of glass beads and
steel shot;
No Ferrous Contamination
It contains zero iron,there is no ferrous contamination to the
treatment surface,it is able to replace
the steel shot where no ferrous contamination is not acceptable.
No hiden danger of silicosis
Ceramic beads generated low dust in blasting process,it offers a
cleaner working environment and
also no hiden danger of silicosis,which is good for worker’s
health.
4. Main Application of Zirconia Ceramic Beads Zirconium Sand
In the civil field:
It is widely used for surface cleaning of various metal products
such as aluminium alloy,titanium alloy
and stainless steel parts (stainless steel tableware, kitchen
utensils), textile machinery parts, punching
and forging tools, machine tools, medical equipment, etc.
It is also used for finishing and surface pretreatment to remove
the scale, rust, burrs etc..
It is also widely used to clean various industrial tools such as
glass processing, tire manufacturing and
plastic molding.
In the military field:
it is usually used for surface strengthening of precision casting
parts such as aircraft turbine blades ,
ordnance, and various spring gear hydraulic parts to eliminate the
internal stress.
5. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
7. FAQ
Are you direct Manufacturer of Zirconia Ceramic Beads ?
Yes,we are professional manufacturer,equipped with the most
advanced production line and testing
equipment;
Are you able to provide free samples?
Yes, few quantity free sample is avialable.
Could you please name your some clients?
Yes, our clients includes Foxconn, Samsung Electronics etc.
If you have any other questions,please contact me freely.
