Ceramic Bead Blasting B60 sand blasting abrasive media for tire,
glass bottles molds cleaning
Description

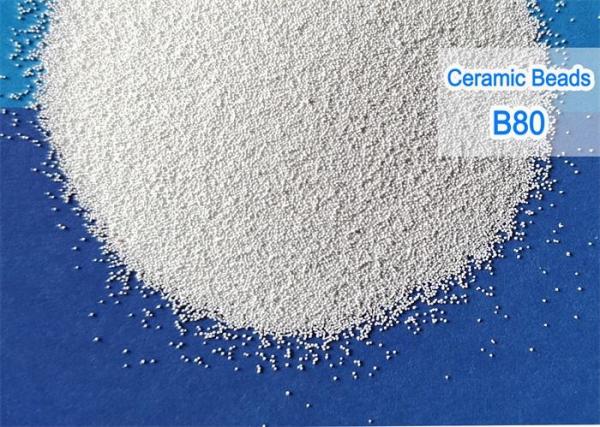

The ceramic bead is a kind of Zirconia ceramic blasting media, with
ZrO2 60-66%, mainly used for sand blasting and shot peening. For
sandblasting size ranges from B20 t0 B505, for shot peening size
from Z825 to Z100.
One of the applications is for sandblasting cleaning for molds,
like tire molds cleaning, glass bottle molds cleaning.
Applicable equipment is sand blasting machine.
Specification
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 | Special sizes can be customized |
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 |
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
Features
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting
effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger
of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working
efficiency.
Application

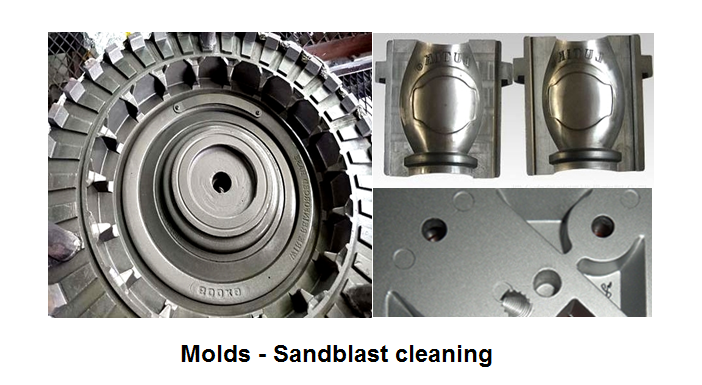

Molds - Sandblast cleaning
Molds cleaning by Ceramic beads sandblasting, doesn’t hurt the
molds surface, and ensures the mold accuracy, applicable for
aluminum alloy die-casting mold, aluminum extrusion mold, tire
mold, glass bottle mold, etc.
Applicable equipment
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
Contact us
No matter you’re the end users, blasting service suppliers,
sandblasting equipment dealers or ceramic blasting media and other
blasting abrasive distributors, welcome to contact us. More details
of ceramic blasting beads, updated prices and samples will be
available.
