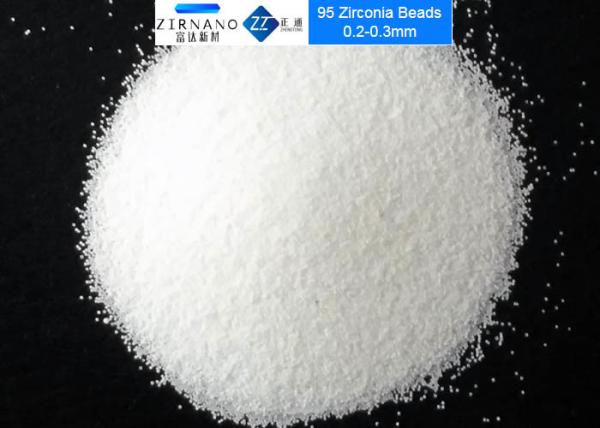

95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media for Comestic Dispersion

1. Description of 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media

The 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media is produced from yttria-stabilized

zirconia powder by special sintering process, It contains 95% zirconia,then it is also called as 95 zirconia.

It is widely used for grinding and dispersion of high viscosity slurry.

2. Main Technical Index of 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media

• Typical Chemical Index

ZrO2 ≥95%

Y2O3 ≥4.5%

Others ≤0.5%

Sintering process

• Physical Index of Zirconia Beads:

True Gravity ≥6.0g/cm3

Bulk Density ≥3.7g/cm3

Vicker Hardness ≥1100 HV

Compressive strength ≥2.0KN Φ2mm

• Specifications:

Φ0.1-0.2mm, Φ0.2-0.3mm, Φ0.3-0.4mm

Φ0.4-0.6mm, Φ0.6-0.8mm, Φ0.8-1.0mm

Φ1.6-1.8mm, Φ1.8-2.0mm, Φ2.0-2.2mm

Φ2.2-2.4mm, Φ2.4-2.6mm Φ,2.6-2.8mm

Φ4mm, Φ5mm, Φ6mm, Φ7mm, Φ8mm,

Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,

Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,

Φ50mm etc.

3. Main Features of 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media

• Higher density offers a better impact force resulting in superior grinding efficiency.
• Smooth surface, perfect sphericity and narrow size distribution
• High Purity ensures little contamination to the surface of treatment
• Resistant to acid and alkali, rust,compatible with water based processing.
• Lower abrasion rate offers long time service

4. Main Application of 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media

• Dielectric, piezoelectric and magnetic materials
• Pigments, inks, dyes, paints & coating materials
• Battery and fluorescent materials
• High purity advanced ceramic materials, frits, and glazes
• Pharmaceutical, dental, cosmetic, and foodstuffs

5. Products Package of 95 Yttrium Stablized Zirconium Oxide Ceramic Grinding Media

25kg drum+pallet,special packages can be customized.

6. FAQ

Q: What is the size in your products?

A: Our common size is 0.1mm-50mm. Special specification can be customized

Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.

Q: Are you able to accept small quantity sample order before Formal Production?

A: Yes, of course.

Q: How long the goods will be prepared well after order placed?

A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order

quantity and goods specifications.
