    ISO ZrO2 B120 Metal Surface Finishing Ceramic Beads

    Ask Lasest Price
    Brand Name : Zhengtong
    Model Number : B20-B505
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200mts per month
    Delivery Time : 3-5 days after order confirmed
    Certification : N/A
    • Product Details
    • Company Profile

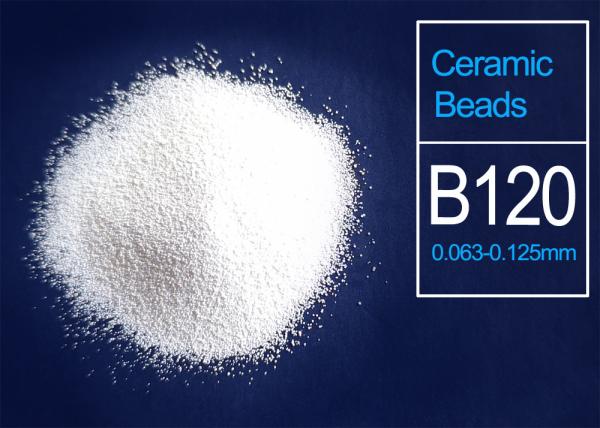

    ISO ZrO2 B120 Metal Surface Finishing Ceramic Beads

    Ceramic beads B120 size 0.063-0.125mm for Metal surface finishing

    • DESCRIPTION

    Ceramic beads is a zirconia based material and with ZrO2 about 60-62%, SiO2 25-30%.


    Ceramic blasting media is widely used for sandblasting surface finish.

    Applicable for Metal surface finishing and cleaning without dimensional change.


    Materials Applicable:


    • Aluminium
    • Aluminium alloy
    • Steel
    • Stainless steel
    • Titanium alloy
    • Magnesium alloy
    • Brass
    • Copper, etc.

    • SPECIFICATION

    Chemical & Physical Index


    Chemical IndexProduction ProcessTrue DensityBulk DensityHardness
    VickersMohsRockwell

    ZrO2 : 60-66%

    SiO2: 25-30%

    Al2O3: 7-13%

    Smelting3.852.3700HV760HRC

    Sizes


    B20: 0.600-0.850mmB80: 0.125-0.212mmB170: 0.045-0.090mm
    B30: 0.425-0.600mmB100: 0.106-0.180mmB205:0.000-0.063mm
    B40: 0.250-0.425mmB120: 0.063-0.125mmB400: 0.030-0.063mm
    B60: 0.150-0.300mmB150: 0.053-0.106mmB505: 0.010-0.063mm

    Features of Ceramic beads



    • Smooth spherical beads
    • High elasticity
    • Low breakdown rate
    • Low dust generation
    • Good finish Consistency

    Parameters- (Comparing with glass beads and steel shot)


    ParametersCeramic BeadsGlass BeadsSteel Shot
    Chemical indexZrO2+SiO2+Al2O3SiO2+NaO2C+Si+Mn+S+P
    Vickers Hardness≈700HV≈560HV≈700HV
    Rockwell Hardness≈60HRC≈46HRC≈60HRC
    True Density3.85g/cm32.6 g/cm37.8 g/cm3
    Size range0.04-0.85mm0.045-0.85mm0.05-0.60mm
    Shapesphericalsphericalfillet
    Dust PollutionVery littlebigmedium
    Metal Pollutionnonospherical
    Recycling timesMulti-time1-2 timesMulti-time
    Work lifeLongLow 1/25 of ceramic beadsLong
    Power consumptionLowLowHigh
    Equipment wear lossLowLowHigh
    Sandblasting effectHigh finish, no discolorationHigh finish, whitishLow finish, darken

    Applicable Equipment



    • Dry sandblasting machine
    • Wet pressure blasting systems
    • Wheel turbine blasting equipment
    • Vapor blasting equipment
    • Micro sandblasting machine

    Package



    25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet



    • APPLICATION

    Ceramic beads is widely used for sandblasting of bikes frame.
