700HV Ceramic Blasting Media Zirconia Beads JZB20 JZB30 JZB40 JZB60
for Metal Surface Finish

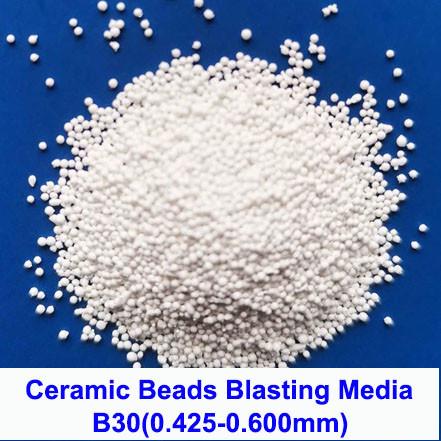

1. Product Description of Ceramic Beads
Ceramic Beads is also called as ceramic micro-beads,it selects the
high-quality imported Australian zircon
sand as main raw material, then fused in electronic furnace under
high temperature over 2000 degrees,finally
made into different micro-beads by the process of
cooling,screening,magnetic separation,inspecting,packing.
It has the features of good sphericity,smooth surface,good
elasticity,high hardness,which can be rebounded
at any angle in the whole process of sandblasting,especially
suitable for the metal surface finish.
Meanwhile,it can also eliminate the stress and improve the fatigue
life of treated work-pieces.
2. Main Technical Data of Ceramic Beads
| Commodity Name | Ceramic Bead Blasting Media |
| Chemical Index | ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13% |
|
|
| Particle Size | B20: 0.600-0.850mm |
| B30:0.425-0.600mm |
| B40:0.250-0.425mm |
| B60:0.150-0.300mm |
| B80:0.125-0.212mm |
| B100:0.106-0.180mm |
| B120:0.063-0.125mm |
| B150:0.000-0.125mm |
| B170:0.045-0.090mm |
| B205: 0.000-0.063mm |
| B400: 0.030-0.063mm |
| B505: 0.010-0.030mm |
| Special Size can be customized. |
3. Main Applications of Ceramic Beads
Mainly used for metal surface finishing,
Mold cleaning ,rust removal, deburring,
surface shot peening and strengthening of aircraft blades, gears
and turbine parts,
Pre-treatment before electroplating and painting,
Surface finishing of sports, fitness equipment and medical
equipment.
4. Advantages of Ceramic Beads
Long Service Life
The service life of ceramic beads can be prolonged 20-30 times
compared with the one of glass beads,
it will reduce the refueling times and finally save the overall
product cost.
Low Dust
Ceramic beads has high hardness and medium density and dense
crystal structure,only few beads will
be broken-down, so it will generate little dust in whole
sandblasting process,then ensuring the worker to
escape from the hidden danger of silicosis
No ferrous contamination
Ceramic beads mainly contains ZrO2,SiO2,Al2O3,there is no ferrous
contamination to the treated-workpieces,
it can replace steel shot,where ferrous contamination is
prohibited.
5. The Popular Specification of Ceramic Beads
B40,B60,B120,B170,B205 is the more popular specification of ceramic
beads,mainly used for surface finish of
metal,rubber,plastic products etc.
6. Why Choose us?
Professional manufacturer:
Equipped with the most advanced production line and professional
staffs,annual output over 3000mts;
High Cleanliness:
All the ceramic beads are screened more than six times and
blow-cleaning under high temperature,which
provides higher clearliness and ensures it to be work normally in
humid weather;
More Competitive Price/performance Ratio:
Our plant locates in mountain area,it has lower production cost and
environmental protection cost,so price
is more competitive than the other plants’.
Stable Supplier of Famous enterprises:
We are the stable supplier of Foxconn,Samsung electronics...
