Ceramic Blasting Media Zirconia Sand JZB60 JZB80 JZB100 JZB120 for
Metal Parts and Light Alloy
1. Product Description of Ceramic Beads Blasting Media
Ceramic Beads selects the high quality imported zircon sand as main
material,then fused in
Electronic furnace under high temperature over 2000 degrees by
unique and special process.
It has good impact strength,high toughness, high hardness and good
surface smoothness,especially suitable
for surface strengthening in the production and maintenance of
metal parts, as well as shot peening of light
alloy parts.
Ceramic beads has wide particle size range from B20(0.600-0.850mm)
to B505(0.010-0.030mm), which can
be matched with most models of sandblasting machines,no matter it
is manual sandblasting machine,
automatic sandblasting machine or sandblasting room.
2. Main Technical Data of Ceramic Beads
| Commodity Name | Ceramic Beads Blasting Media |
| Chemical Index | ZrO2 | 60-66% |
| SiO2 | 25-30% |
| Al2O3 | 7-13% |
| Physical Index | Vickers Hardness | ≥700HV |
| Bulk Density | ≥2.3g/cm3 |
| True Gravity | ≥3.85g/cm3 |
| Specification | B20: 0.600-0.850mm | B120:0.063-0.125mm |
| B30:0.425-0.600mm | B150:0.000-0.125mm |
| B40:0.250-0.425mm | B170:0.045-0.090mm |
| B60:0.150-0.300mm | B205:0.000-0.063mm |
| B80:0.125-0.212mm | B400:0.030-0.063mm |
| B100:0.106-0.180mm | B505:0.010-0.030mm |
| Remark:Specifical Specification can be customized |
3. Main Applications of Ceramic Blasting Media
Manufacturing and maintenance of titanium alloys for aviation
industry.
Surface cleaning and maintenance of mold industry

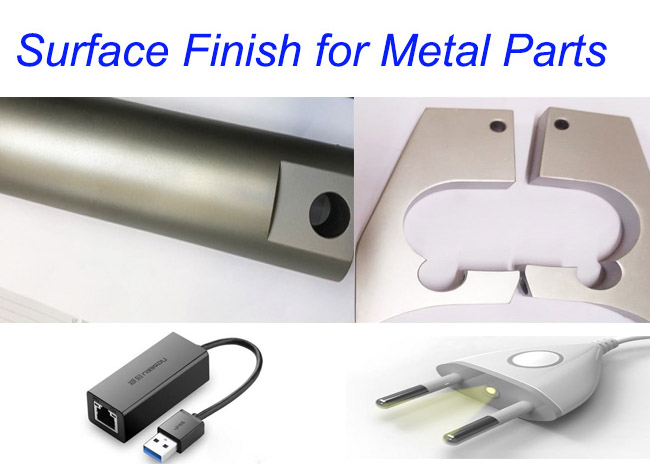

Surface strengthening and fine art decoration in metal processing
industry
Deburring for Electronic circuit board in Electronic industry
Anti fatigue and strengthening treatment of shock absorber spring
and turbide blade in automobile industry
Rust-removal,oxide-scale removal for Renovation of metal workpieces
4. The Precautions for Using Ceramic Beads
The worker is required to wear protective clothes and eye masks in
whole process of sand blasting, since
the nozzle will generate huge pressure, and the ceramic sand
particles will rebound due to the impact of
the surface.
In order to achieve ideal blasting effect, it is required to
inspect if there is any foreign matters and floating dust
on the treated-workpieces before blasting.
Trial blasting is required before continuously mass blasting
5. Main Package of Ceramic Beads
