B100 Ceramic Bead Blasting Media For stainless steels Sandblast
Surface Finish
WHAT IS CERAMIC BLASTING MEDIA
Ceramic blasting media is an abrasive blasting media commonly used
in blasting machines. It's also known as ceramic beads or zirconia
sand, it is produced by the electric/thermal fusion of zirconia
sand. The internal structure of ceramic blasting media is composed
of crystalline ceramic phase bonded with amorphous silica phase,
which has high impact performance and good hardness.
PECIFICATION OF CERAMIC BLASTING MEDIA
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 | Special sizes can be customized |
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 |
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
FEATURES OF CERAMIC BLASTING MEDIA
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting
effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger
of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working
efficiency.
HOW ABRASIVE BLASTING MEDIA WORKS?
Use purified compressed air to spray dry ceramic beads on the
surface of metal products to remove surface defects and present a
uniform, matte sand surface.
Types of Abrasive Blasting
1. Air Blasting (Conventional)
2. Wet Blasting
3. Vacuum Blasting
4. Centrifugal Blasting
5. Vapour blasting
6. Micro blasting

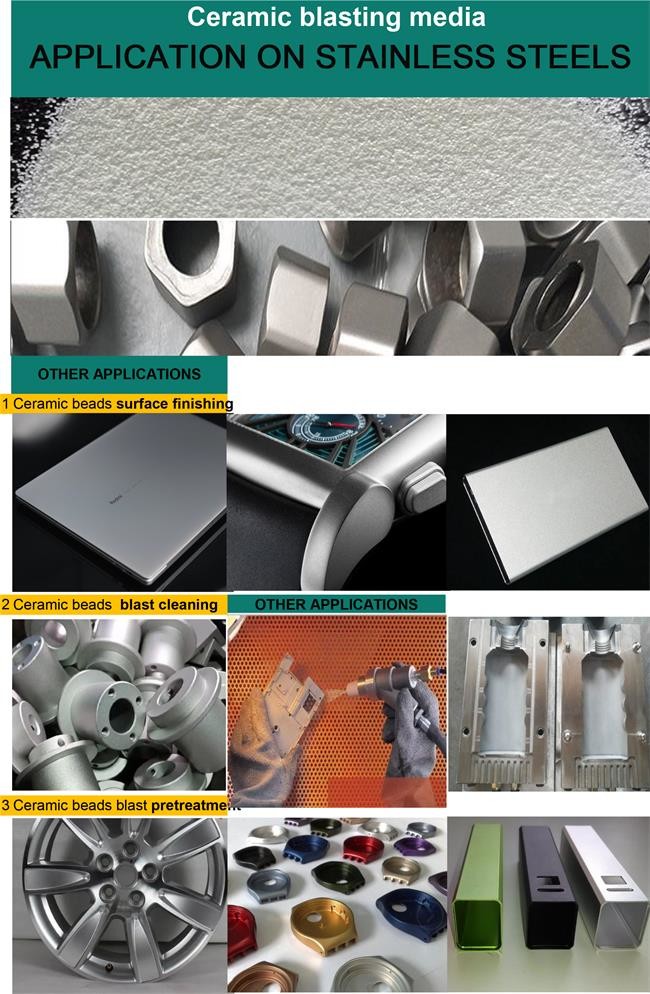

APPLICATION OF CERAMIC BLASTING MEDIA
Blasting cleaning: to remove burrs, casting slag and other defects and dirt on the
surface of the workpiece and also residues of the molds;
Blasting finish: to show natural metal color and achieve uniform surface matting
effect.
Pretreatment: to get clean surface and frosted rough surface before Anodizing
and coating.
Main functions:
Blasting cleaning: to remove burrs, casting slag and other defects and dirt on the
surface of the workpiece and also residues of the molds;
Blasting finish: to show natural metal color and achieve uniform surface matting
effect.
Pretreatment: to get clean surface and frosted rough surface before Anodizing
and coating.
