Ceramic Shot Peening Beads Z600 600-850μm, Z425 425-600μm For
Turbine
1. Product Description of Ceramic Shot Peening Beads
Ceramic beads is available in two applications: one for ceramic
blasting beads,the other one for ceramic
shot peening.
Both has same chemical compositon and physical properties,but
ceramic shot peening has more
concentrated particle size distribution and higher sphericity,then
both are distinguished by two different
models in B series and Z series.
2. The comparation between Ceramic Shot Peening and Ceramic
Blasting Beads
Both have the same technical data as below:
| Commodity | Main Chemical Index | Main Physical Index |
Ceramic Shot Peening or Ceramic Blasting Beads | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
While different particle size and applications:
| Commodity | Ceramic Bead Blasting | Ceramic Shot Peening |
| Usage | Blasting Media | Shot Peening |
| Applicable Equipment | Blasting Machine
Blasting Room | Shot Peening Machine |
Particle Size (Special size can be customized) | B20:600-850μm
B30:425-600μm
B40:250-425μm
B60:150-300μm
B80:125-212μm
B100:106-180μm
B120:63-125μm
B170:45-90μm
B205:0-63μm
B400:30-63μm
B505:10-30μm | Z850: 850-1180μm
Z600: 600-850μm
Z425:425-600μm
Z300: 300-425μm
Z210: 210-300μm
Z150: 150-210μm
Z100: 100-150μm |

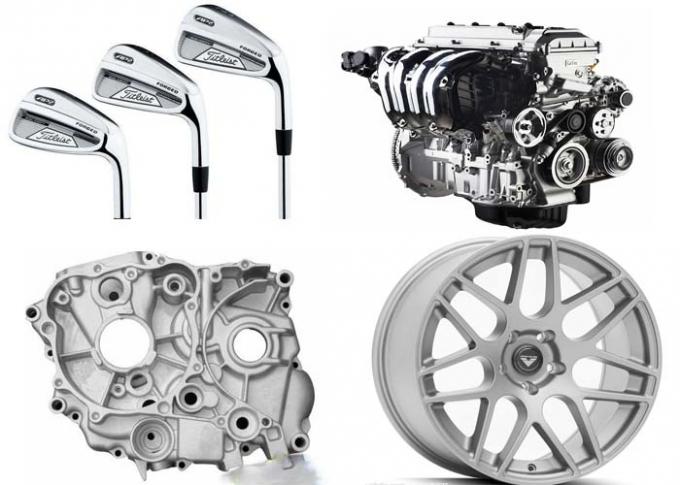

3. Main Application of Ceramic Beads
In Shot Peening:
It is widely used for surface Shot Peening in aerospace industry &
automotive industry
In Blasting Media
Metal Surface finish for 3C products,built-in parts,accessories;
Surface finish for textile machinery,kitchen & bathroom products;
Surface cleaning for the inner&outer walls of metal pipes,
rubber molds,plastic molds,glass-bottle molds etc.
Deburring for locks and lock components, circuit board etc
Descaling for heat-treated pieces,castings,forgings etc
Surface finish for golf head and artificial joint, medical
instruments etc.
4. Packages of Ceramic Shot Peening:
25kg barrel(12L) + Pallet;
2*12.5kg barrel+ Carton + Pallet.
Special package can be customized.
5. Why Ceramic Shot is one ideal peening media?
Ceramic shot peening has lower breakdown rate,it will generate
little dust and solid waste,then
Provide one clean workingcondition,reduce the waste disposal cost;
Ceramic shot peening has high hardness,toughness,it will provide
smooth and uniform peening effect
