High Cleanlines Ceramic Shot Peening Zirconia Sand B100 for
Automotive Industry
1. Product Description
The Ceramic Shot Peening Zirconia Sand is fused by zirconium sand
in electro furnace under high temperature over 2000 degrees,made
into different beads through selecting, inspeting,packing etc,
its characteristics of high hardness and low breakdown rate makes
it to be widely used as shot
peening media.
2. Main Technical Index of Ceramic Shot Peening Zirconia Sand
| Commodity | Main Chemical Index | Main Physical Index |
Ceramic Shot Peening Zirconia Sand (Melting Method) | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
3. Why Zirconia Sand is suitable for shot peening beads?
Due to the special chemical composition and physical property
,Zirconia Sand has lower breakdown
rate when as shot peening beads,that means the beads in balsting
equipment is more stable and
consistency ,people do not need to refuel new beads in to the
equipment frequently ,then it will
achieve more consistent surface finish effect during the long
working time compared with the
glass beads, it will also impact a layerof residual compressive
stress onto the treatment surface
to avoid the formation of fatigue cracks occurred on the
surface,then finally prolong the treatment
service life.
Also due to the high hardness and lower breakdown rate,ceramic
beads has long service life which is
20-30 times compared with the one of glass beads when treating the
same parts. Although its initial
price is expensive than the one of glass beads,while seen from the
long time operation, the overall
cost is cheaper.
There is also no dust and hidden danger of silicosis to the
worker's health,it is one environmental
friendly peening beads compared with the traditional glass beads.
4. Main Application of Ceramic Shot Peening Zirconia Sand(Just name
few applications)
Shot peening for aircraft and shipbuilding industry such as
springs,gears,wheelturbine etc
Shot peening for automotive compentents such as gearbox, aluminium
hubs etc to extend its
anti-fatigue life
Shot peening for vairous molds such as galss molds, tie molds,dies
to clean the oil stains, rust etc.

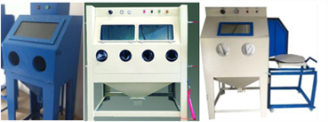

5. Applicable Equipment:
Manual Sandblasting machine:
Automatic Blasting Machine:
Open Blasting Machine:
Sandblasting Room
6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6.Plant Photo
