Low Breakdown Rate 62% ZrO2 Zirconium Silicate Ceramic Beads B60
for shot peening

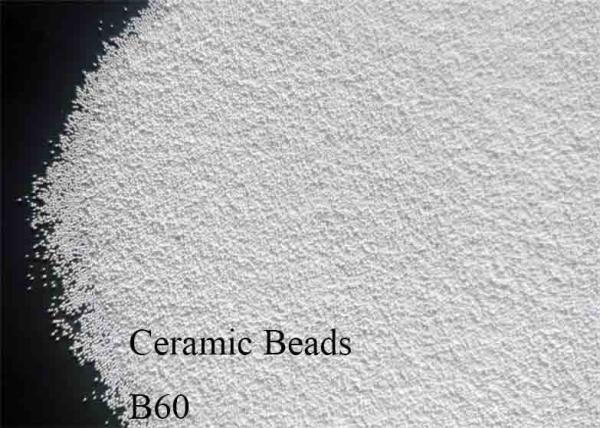

1. Description of Zirconium Solicate Ceramic Beads
Zirconium Silicate Ceramic Beads are spherical and white,it has
wide particle size,its
outstanding toughness,hardness,good elasticity ensures it to keep
its initial shape after long
time operation.
It is widely used in shot peening application. Compared with the
glass beads,its lower breakdown
rate could offer consistent peening effect.
2. Main Technical Index of Zirconium Silicate Ceramic Beads
| Commodity | Main Chemical Index | Main Physical Index |
Zirconium Silicate Ceramic Beads (Melting Method) | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
3. Product Features of Zirconium Silicate Ceramic Beads
High Hardness and Good Elasticity
Ceramic beads has smooth surface and good elasticity,which ensures
it is able to be rebounded in
multi-angles during the peening process,especially suitable for the
Light Metal such as aluminium,
aluminium alloy,titanium alloy etc.;
High Efficiency &High Price/Performance ratio
The greater density of ceramic beads makes it higher modulus of
elasticity and greater impact energy,
it will reduce shot peening pressure and energy consumption to get
the same shot peening effect.
Compared to glass beads, the service life of ceramic beads could be
prolonged at least 20- 30 times.
The workpiece treated by ceramic beads will achieve better visual
effect and texture as well as lower
toughness compared with the one treated by glass beads.
No Ferrous Contamination
Ceramic Beads contains 60-66% ZrO2,there is no ferrous
contamination to the surface of treatment,
its good spherical will also not damage the peening equipment;
No Hidden Silicosis danger
Its lower breakdown rate offers clean working condition to the
operator, people will not concern about
the dust and hidden silicosis danger.
4. Main Application of Zirconium Silicate Ceramic Beads

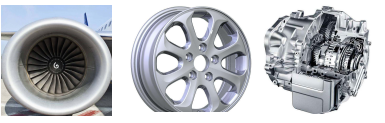

Shot peening in aviation and automotive industries such as
automotive aluminium hubs;
Surface finishing for light metal and plastic parts such as 3C
products and medical instruments etc.;

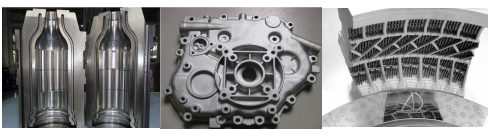

Removal the oilstains,oxide scale,and other impurities from various
glass- making moulds, rubber tire moulds;
Surface Cleaning for various pipes such as steel pipes,copper pipes
etc.,
5. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
