High Mechinical strength Ceramic bead blasting shot peening
B20-B205,Z100-Z850
1. Product Description of Ceramic bead blasting shot peening B20-B205,Z100-Z850
Ceramic bead is made by high quality zirconium sand in one
electrical furnace under high temperature
over 2000 degrees through special technology.
Ceramic bead is divided into two types: the microblast fine ceramic
beads are used for one clean blasting
media in surface finishing,the other one are used for shot peening
of metal alloys as well as hard alloys
for aerospace structural components.
2. Main Technical Data of Ceramic Bead Blasting
| ZrO2 | SiO2 | Al2O3 |
| 60-66% | 25-30% | 7-13% |
| Vicker Hardness | True Specific Gravity | Bulk Density |
| ≥700 HV | ≥3.85 g/cm3 | 2.3g/cm3 |
3. Main Features of Ceramic Bead Blasting
High Hardness,small deformation
Low breakdown rate,long service life
Low dust levels,good blasting sight
No ferrous contamination to the treatment surface
Few damage to the blasting equipment
No hideen danger of silicosis
4. Main Application of Sandblasting & Shot Peening
Ceramic bead has high hardness and good impact resistance,low
breakdown rate,so it is widely used as
one clean blasting media in surface finish of 3C products such as
the metal or plastic surface or its built-in
parts of computer,mobile phone,camera as well as for USB, power
bank etc....
Ceramic beads has extremely fine microstructure, which provides
good impact strength and toughness,
so it is suitable for Shot peening of metal parts and light alloy
parts such as alluminum & alluminum alloy
parts,titanium alloy,magnesium alloy as well as stainless steel
parts and copper parts.
5. The comparasion between Sandblasting and Shot peening
Same Working Principle:
Both Selected the compressed air as power, and blow the blasting
media out at high speed to impact the
surface of the workpiece to achieve the cleaning effect.
While Shot peening produces a larger compressive stress on the
surface than the one of sand blasting
So they will achieve different visual effect:
Sandblasting will provide a dark surface without metallic luster,
while shot peening will achieve the matt effect
&metallic luster.
6. Why choose us
Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning
under high temperature,
which provides higher clearliness and ensures it to be work
normally in humid weather;

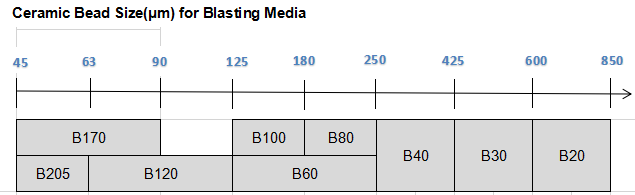

More concentrated particle size distribution
B170(0.045-0.090μm),B205(0.045-0.063μm) is more concentrated than
the other one(0-0.063μm) from
other company,which will achieve better blasting effect.
High price/performance Ratio
Our factory is located in the mountain area,where has the lower
production cost and environmental cost,
So price is more competitive.
