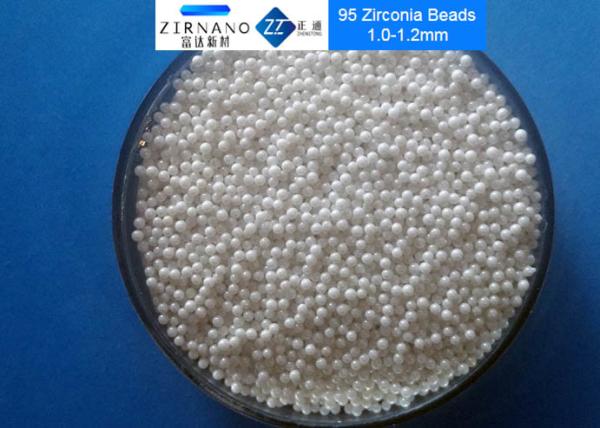

95 Ziconia Ceramic Beads Yttrium Stablized Grinding Media for
Titanium Oxide Dispersion
1. Description of 95 Ziconia Ceramic Beads Yttrium Stablized
Grinding Media
Ziconia Ceramic Beads is also called as zirconia beads,95 Yttrium
stablized beads,95 zirconia.
It is the most durable grinding media compared with other ceramic
beads such as alumina ball,65 zirconia.
Zirconia Cearmic Beads is widely used for wet grinding and
dispering application as well as make construction
ceramics.
2. Main Technical Index of 95 Ziconia Ceramic Beads Yttrium
Stablized Grinding Media
| Commodity | Typical Chemical Index | Main Physical Index |
95 Zirconia Beads | ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 |
| Others ≤0.5% | Vicker Hardness ≥1100 HV |
| Sintering process | compressive strength ≥2.0KN Φ2mm |
| Zirconia Beads Specification |
| Φ0.1-0.2mm | Φ0.2-0.3mm | Φ0.3-0.4mm | Φ0.4-0.6mm |
| Φ0.6-0.8mm | Φ0.8-1.0mm | Φ1.0-1.2mm | Φ1.2-1.4mm |
| Φ1.4-1.6mm | Φ1.6-1.8mm | Φ1.8-2.0mm | Φ2.0-2.2mm |
| Φ2.2-2.4mm | Φ2.4-2.6mm | Φ2.6-2.8mm | Φ2.8-3.0mm |
| Φ4mm | Φ5mm | Φ6mm | Φ7mm |
| Φ8mm | Φ9mm | Φ10mm | Φ12mm |
| Φ15mm | Φ17mm | Φ20mm | Φ25mm |
| Φ30mm | Φ40mm | Φ45mm | Φ50mm |
| Special Specification can be customized |
3. Main Features of 95 Ziconia Ceramic Beads Yttrium Stablized
Grinding Media
- Highly cost-effective, low wear and long service life
- High specific gravity, better grinding efficiency
- High Purity ensures little contamination to the surface of
treatment
- Resistant to acid and alkali, rust,compatible with water based
processing.
- Lower abrasion rate offers long time service
4. Main Application of 95 Ziconia Ceramic Beads Yttrium Stablized
Grinding Media
- Titanium Oxide
- Electronic and ceramic slurry,Battery material
- Magnetic&rare-earth material
- Non-metallic mineral& ground calcium carbonate
- Ink,coating,pigment,dye
- Medicine & Pesticides,Food,Comestic etc.
- High purity and ultrafine Nano Materials
5. Products Package of 95 Ziconia Ceramic Beads Yttrium Stablized
Grinding Media
25kg drum+pallet,special packages can be customized.
6. FAQ
Q: What is the size in your products?
A: Our common size is 0.1mm-50mm. Special specification can be
customized
Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.
Q: Are you able to accept small quantity sample order before Formal
Production?
A: Yes, of course.
Q: How long the goods will be prepared well after order placed?
A: Goods will be ready well 3-14 days after receiving the payment,
it depends on the order
quantity and goods specifications.
