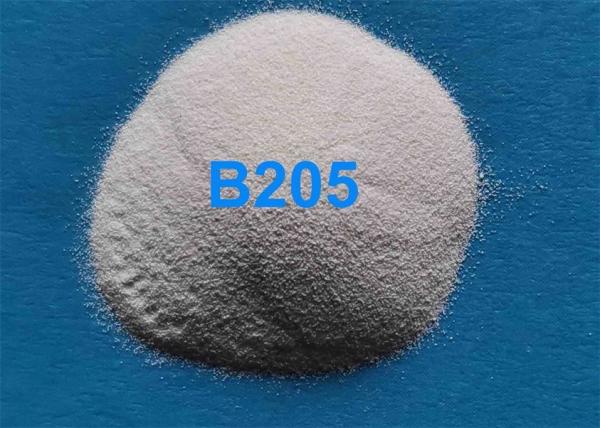

Ceramic Bead Blasting B205 45-90μm Surface Finish For 3C,Stainless
Steel,Aluminum Alloy
1. Product Description of Ceramic Bead Blasting
Ceramic Beads is one clean and high efficiency blasting media, it
can be used in many applications where glass beads is used.
2. Main Technical Data of Ceramic Bead Blasting
| Commodity | Main Chemical Index | Main Physical Index |
| Ceramic Beads | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size of Ceramic Beads |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
3. Why ceramic bead is one popular blasting media?
Ceramic Bead has high density and hardness,it will achieve more
consistent & shinny blasting effect and
lower toughnes.
Ceramic bead has round solid shape, good elasticity, smooth
surface, it is not easy to be breakdown in
the blasting process, can be recycled and reused, for many
times,which prolonged its service and finally
reduce the production cost;
Ceramic bead will generate little dust,providing one better
blasting condition,no hidden danger of silicosis.
Ceramic bead has no ferrous contamination to the workpieces and
blasting equipment.
Therefore it is one popular blasting media.
4. Main Application of Ceramic Bead Blasting
Surface finish for 3C products and its built-in parts as well as
accessories.
Surface finish for light alloy such as titanium alloy, magnesium
alloy,aluminum alloy etc.
Surface Cleaning for various molds of glass bottles,tires...
Surface cleaning to remove the oxide scale,stains of the mechnical
parts,die casting etc.
Shot peening for automotive and aerospace industry to improve the
anti-fatigue life and eliminate the stress.
5. How to calculate the media blasting cost?
| Media Blasting Cost |
| Media Name | Cycles | %Breakdown |
| Glass Beads | 9-12 | 10% |
| Ceramic Beads | 70-90 | 1.20% |
| Steel shot | 80-100 | 1% |
| Media Cost Per Hour=Hourly Delivery Rate*%Breakdown*cost per Lb. |
| Media Cost to Blast a Part=Media Cost Per Hour*Part cycle time(% of
Hour) |
Media blasting cost is one important index to choose one right
blasting media, you will
find the answer from the above chart.
6. Why choose us?
Professional Manufacturer of ceramic beads,annual output over
3000mts;
Equipped the most advanced production line,testing equipment, as
well as professional technical staffs
and 7*24h technical support;
Strict quality control and quality assurance, products will be
inspected by each shipment,even for the free
sample in small quantity;
Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;
Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group
etc.;
Products in good quality & stable performance,competitive
price,flexible payment terms,prompt delivery etc.
