JZB100(0.106-0.180mm) JZB60(0.150-0.300mm) Zirconia Ceramic Bead Blasting Media

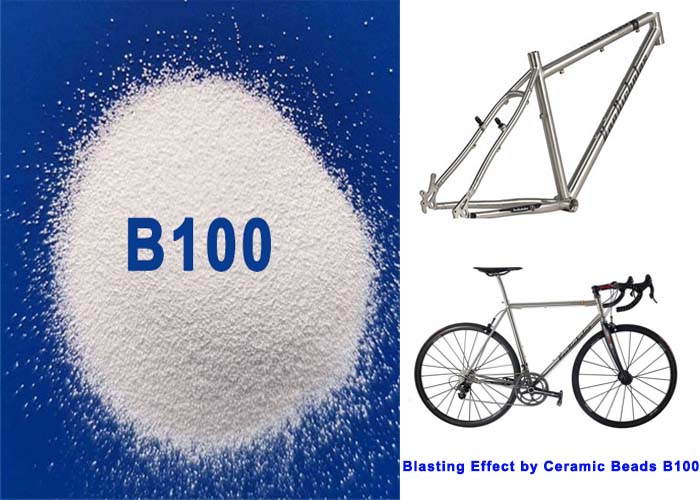

1. Product Description of Ceramic Bead Blasting
Ceramic bead blasting media ,it selects the high quality zircon
sand as main material,then melt in
electronic furnace under high temperature over 2000
degreess,finally made into different microbeads.
Ceramic bead contains 60-66% ZrO2,7-13% Al2O3,25-30% SiO2,it is
also called as zirconia sand.
It is suitable for metal surface finish due to its smooth
surface,good elasticity,high hardness.
Compared with glass beads and steel shot,ceramic bead blasting
media has medium density,which can
make up the blind area of lower and upper limit of sandblasting.
Ceramic Beads Blasting is one clean and economic blasting media for
long term blasting process.
2. Main Technical Data of Ceramic Beads
| Commodity | Main Chemical Index | Main Physical Index |
Ceramic Bead Blasting | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
Particle Size
(Ceramic Bead Blasting) | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150:0.000-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm |
| B100: 0.106-0.180mm | B505: 0.010-0.030mm |
| Remark: Special specification can be customized |
3. The Advantages of Ceramic Blasting Media
Long service life
Ceramic bead has dense crystal structure,good toughness and high
hardness,low breakdown rate,it can
be recycled for many times. Its service life can be prolonged to be
20 times compared with the one of
glass beads.
Low dust
Ceramic bead blasting media will generate little dust in whole
blasting process,which will provide one clean
and bright working condition,aslo ensures worker to escape from the
hidden danger of
silicosis,finally reduces the treatment cost of solid waste.
No Ferrous Contamination
Ceramic beads has zero ferrous contamination to the treated
workpieces,it can replace steel shot where
ferrous contamination is not allowed.
4. Main Applications of Ceramic Bead Blasting Media
Surface cleaning for molds,die castings,tire molds,welded steel
components,forged and casted metals...
Surface Finish for metal shell,precison machinery...
Surface preparation for all kinds of steel, aluminum and other
non-ferrous alloys ...
Surface finish for light alloy,stainless steel parts,plastic
parts...
5. Why Choose us?
Professional manufacturer:
Equipped with the most advanced production line and professional
staffs,annual output over 3000mts;
High Cleanliness:
All the ceramic beads are screened more than six times and
blow-cleaning under high temperature,which
provides higher clearliness and ensures it to be work normally in
humid weather;
More Competitive Price/performance Ratio:
Our plant locates in mountain area,it has lower production cost and
environmental protection cost,so price
is more competitive than the other plants’.
Stable Supplier of Famous enterprises:
We are the stable supplier of Foxconn,Samsung electronics...
