700HV Matte Effect Ceramic Bead Blasting Media B205 B400 B505
Surface Finish for Stainless Steel
1. Products Description of Ceramic Bead Blasting Media
Ceramic Beads is one clean and high efficient blasting media,it
contains 60-66% ZrO2,25-30% SiO2 ,
7-13% Al2O3,having the characteristics of high hardness,high
strength,good toughness,low break-down
rate,which is widely used for metal surface finish especially for
inox(stainless steel) products.
2. Main Technical Data of Ceramic Beads
| Commodity | Chemical Index | Physical Index |
Ceramic Beads
(Melting Process) | ZrO2 60-66% | Bulk density:2.3g/cm3 |
| SiO2 25-30% | True Gravity ≥3.85 g/cm3 |
| Al2O3 7-13% | Vicker Hardness≥700 HV |
| Particle Size | B20:0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.045-0.090mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm |
| B100: 0.106-0.180mm | B505: 0.010-0.030mm |
| Special specification can be customized |
3. Main Applications of Ceramic Bead Blasting Media
Metal surface finish for 3C products such as computer,mobile
phone,camera as well as its accessories such
as power bank,USB,Bluetooth earphone etc.;
Surface pretreatment before electroplating or anodizing;
Surface cleaning for glass bottle molds,rubber molds.plastic molds
etc.;
Deburring for Electronic Components such as circuit board etc.;
Descaling or rust removal for mechnical parts such as die
casting,heat treated workpieces etc.;
Surface finish for light alloy products such as medical
instruments,sport equipments etc..
4. How to choose the high quality ceramic beads?
Firstly,good ceramic beads has uniform shape and good sphericity of
85% ;
Secondly,good ceramic beads has higher whiteness and cleanliness;
Thirdly, good ceramic beads also has lower breakdown rate.

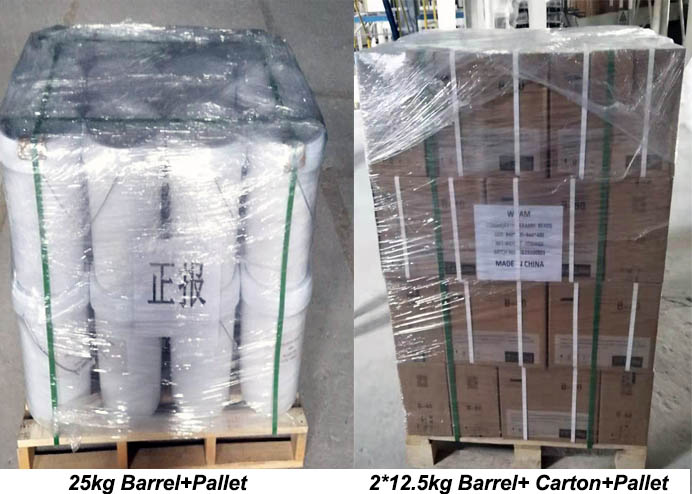

5. Standard packages:
25KG(12L) Barrel + Pallet
2*12.5KG Barrel+ Carton + Pallet
25KG (12L) Barrel+ Wooden box or 2*12.5KG Barrel+ Carton+Pallet.
6. Why Choose us?
Professional manufacturer of ceramic beads,annual output over
2000mts;
Advanced production line and stricter quality assurance system, all
step is traceable in the raw material to
the final products;
Immediately reply,Fast delivery,flexible cooperation method;
Stable supplier of Foxconn,Samsung Electronics, Ujiden etc..
