Zirconia Sand Ceramic Bead Blasting Media B60 B120 B170 B205 B400 for Magnesium
and Titanium Alloy
1. Product Description of Ceramic Beads Blasting Media
Ceramic beads selects the high-quality imported zircon sand as main
raw material, and made into different
mirco-beads with unique formula and special technology under high
temperature over 2000 degrees.
Ceramic beads is especially suitable for surface strengthening in
the production and maintenance of metal
parts and light alloy parts, which will achieve more uniform
surface finishing effect.
It has good toughness, high hardness , dense crystal structure
,which is not easy to break, can be used
repeatedly, low energy consumption. Compared with glass beads,its
service life can be prolonged 25-30
times,it is one clean and high efficient blasting media.
2. Main Technical Data of Ceramic Beads Blasting Media
| Commodity Name | Chemical Index | Physical Index |
Ceramic Blasting Beads | ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13% | Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting |
|
|
| Particle Size |
| B20: 0.600-0.850mm | B120:0.063-0.125mm |
| B30:0.425-0.600mm | B150:0.000-0.125mm |
| B40:0.250-0.425mm | B170:0.045-0.090mm |
| B60:0.150-0.300mm | B205:0.000-0.063mm |
| B80:0.125-0.212mm | B400:0.030-0.063mm |
| B100:0.106-0.180mm | B505:0.010-0.030mm |
| Remark: Special specification can be customized. |

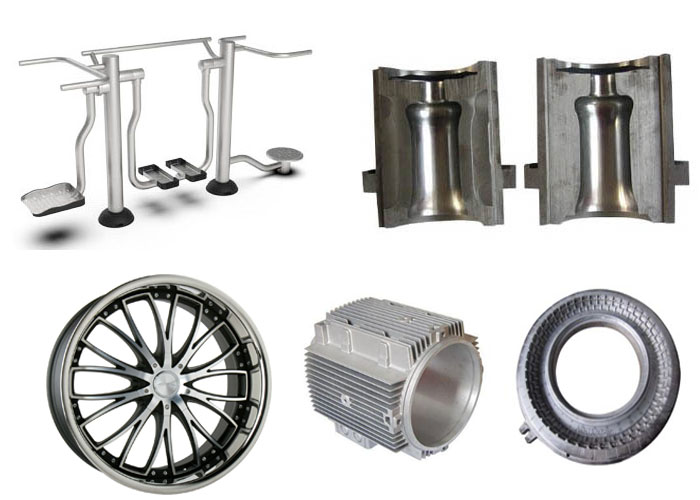

3. Main Applications of Ceramic Beads
Surface finish for 3C products,its built-in parts,accessories
Pretreatment before electroplating, spraying, PU, metal spray
welding, titanium plating etc to achieve the
purpose of surface cleaning and improving surface adhesion.
Surface cleaning for metal parts such as casting parts, stamping
parts, welding parts and heat treatment
parts to remove oxide scale, residue and rust.
Deburring for machined parts and rubber overflow and burr
elimination of injection molded parts.
Surface strengthening of aircraft blades, springs and machining
tools
Mold cleaning to ensure the accuracy of the mold.
Renovation and cleaning of all moving parts of automobiles,
motorcycles, electromechanical equipment, etc.
4. Why ceramic beads is more popular in blasting applications?
Ceramic beads has high hardness and good elasticity,which can be
rebounded in blasting process,there is
no damage to the surface of treated parts and sand blasting
equipment;
Ceramic beads has lower breakdown rate, it will reduce the
refueling times,then it is easy to achieve uniform
sandblasting effect and reduce sandblasting cost;
In addition, there is little dust generated in whole blasting
process, which will provide a cleaner blasting
environment, keep workers away from the hidden danger of silicosis,
meanwhile reduce the treatment cost
of solid waste.
