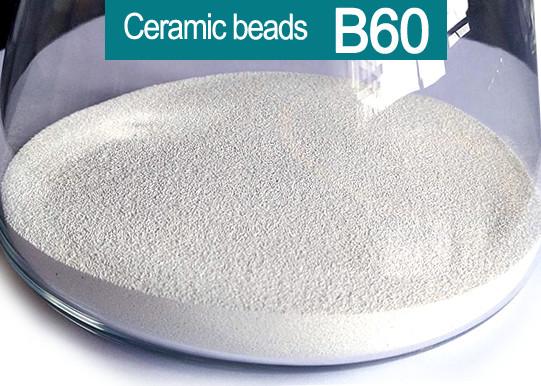

Size B60 Ceramic Bead blasting media for automotive parts surface
treatment
DESCRIPTION OF CERAMIC SANDBLASTING MEDIA
Ceramic beads is a zirconia based material and with ZrO2 about
60-62%, SiO2 25-30%. The ZrO2 microstructure is very fine
and distributed on the SiO2 substrate in a tile shape, so it has
good wear resistance and impact resistance, not easy to be broken
to dusts.
It is new environment friendly sandblasting material replace of
glass beads because of no dust pollution and excellent performance
in matte sandblasting finish.
Widely used as a sandblasting media and perform efficiently in dry
or wet blasting systems as well as in wheel turbine blasting
equipment.
SPECIFICATION OF CERAMIC SANDBLASTING MEDIA
Chemical & Physical Index
|
| Chemical Index | Production Process | True Density | Bulk Density | Hardness |
| Vickers | Mohs | Rockwell |
ZrO2 : 60-66% SiO2: 25-30% Al2O3: 7-13% | Smelting | 3.85 | 2.3 | 700HV | 7 | 60HRC |
Sizes
|
| B20: 0.600-0.850mm | B80: 0.125-0.212mm | B170: 0.045-0.090mm |
| B30: 0.425-0.600mm | B100: 0.106-0.180mm | B205:0.000-0.063mm |
| B40: 0.250-0.425mm | B120: 0.063-0.125mm | B400: 0.030-0.063mm |
| B60: 0.150-0.300mm | B150: 0.053-0.106mm | B505: 0.010-0.063mm |
Features of Ceramic beads
|
- 1. Consistency of spherical shape and sizes provides smooth sating
surface finish and consistent results from the first part to the
last.
|
- 2.Outstanding elasticity provides a high impact force.
|
- 3. High wear resistance, high impact resistance, and low dust.
|
- 4. Cost-effective compared to glass beads, media consumption
reduced up to 90% Vs glass Beads.
|
Parameters- (Comparing with glass beads and steel shot)
|
| Parameters | Ceramic Beads | Glass Beads | Steel Shot |
| Chemical index | ZrO2+SiO2+Al2O3 | SiO2+NaO2 | C+Si+Mn+S+P |
| Vickers Hardness | ≈700HV | ≈560HV | ≈700HV |
| Rockwell Hardness | ≈60HRC | ≈46HRC | ≈60HRC |
| True Density | 3.85g/cm3 | 2.6 g/cm3 | 7.8 g/cm3 |
| Size range | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm |
| Shape | spherical | spherical | fillet |
| Dust Pollution | Very little | big | medium |
| Metal Pollution | no | no | spherical |
| Recycling times | Multi-time | 1-2 times | Multi-time |
| Work life | Long | Low 1/25 of ceramic beads | Long |
| Power consumption | Low | Low | High |
| Equipment wear loss | Low | Low | High |
| Sandblasting effect | High finish, no discoloration | High finish, whitish | Low finish, darken |
Applicable Equipment
|
| Manual sandblasting machine, automatic sandblasting machine, open
sandblasting machine & sandblasting room |
Package
|
25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper
carton+Pallet
|
APPLICATION OF CERAMIC SANDBLASTING MEDIA
Ceramic beads is widely used for sandblasting of automotive parts.
For example: Sandblasting of the surface of the steering knuckle of
auto parts before anodized nickel plating.
Sandblasting plays a very important role in the surface treatment
of auto parts. It can cut the roots of all the dirt on the surface
of auto parts, to achieve the required roughness, and greatly
improve the quality of auto parts, coatings and plating materials.
The connection force may make the bonding of the bonding parts more
stable and better.
