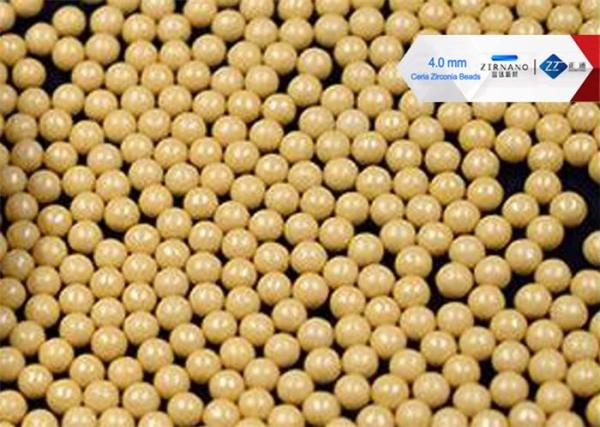

80 Cerium stabilized zirconia ceramic grinding media beads
Cerium stabilized zirconia ceramic grinding media beads is made of
cerium stabilized zirconia powder by a process of titration
molding, and baking and phasing. The microstructure of the beads is
more delicate and denser, which is suitable for the dispersion and
grinding of high solid content and difficult to decompose
materials. It is the largest specific ceramic grinding media.
| Items | Value |
| Composition | 87～80% ZrO2 , 13～20% CeO2 |
| Packed Density | 3.8(Φ7mm) Kg/L |
| Specific Density | 5.5～6.2 g/cm3 |
| Moh's | 8.5~9.0 |
| Elastic modulus | 200 GPa |
| Thermal Conductivity | 3 W/m.K |
| Crushing Load | ≥10 (Φ7mm) KN |
| Fracture Toughness | 8.5 MPam1-2 |
Thermal expansion
Coeffcient(20-400 °C) | 9.0 10x10 -6 / °C(20-400) |
- The microstructure is fine, uniform, and dense tetragonal
crystallites, giving it a jewel-like hardness and density, making
it the biggest true density of all zirconia beads.
- Its excellent wear resistance and fracture toughness are especially
suitable for pure grinding and dispersion of high solid phase, high
viscosity, high hardness slurry;
- At the same time, it is well matched with high input energy and
high shear sand mill.
1. New energy lithium battery: lithium iron phosphate, lithium
titanate, graphite, silicon carbon, graphene, carbon nanotubes,
alumina ceramic diaphragm, etc.
2. Digital inkjet ink: thermal transfer ink, solvent ink, weak
solvent ink, digital printing paint ink, digital printing disperse
dye ink, pigment ink, LED-UV special curing ink, water-based
universal pigment ink, coating ink, printing Ink, pen ink.
3. Paint, ink, dyes: automotive paint, wood paint, anti-corrosive
paint, resin, offset ink, UV ink, gravure ink, water-based ink,
water-based varnish, UV varnish, disperse dye, fluorescent dye,
metallic pigment, Titanium dioxide and so on.
4. Ceramic inks and glazes: ceramic inks, glass pigments, ceramic
glaze pigments, wrapping pigments, low-temperature glaze pigments,
high-temperature fast-burning glaze pigments, metallic luster
pigments, glass pigments, etc.
5. Electronic materials and magnetic materials: soft magnetic,
permanent magnet, conductive ink, silver paste, rare earth metal,
target, graphene conductive agent, electronic insulator material,
piezoelectric material, ceramic capacitor material.
6. Pesticides Agrochemicals: Pesticides suspensions
7. Food,Cosmetics and medicine : chocolate grinding, creamy
cosmetics, nanometer pharmaceutical powder
