1. Product Description of Ceramic Bead Blasting Zirconia Sand
Ceramic Beads is fused from zircon sand in an electric furnace at
high temperature by special technology.
It is an high efficient blasting media,it is widely used for
various applications.
Nowdays, ceramic beads is one popular blasting media,beacuse it
will generate little dust pollution in the long
working condition and offer consistent blasting effect compared
with the galss beads.
2. The simple comparation between Ceramic Blasting Beads an Glass
Beads
| Item | Ceramic Blasting Beads | Glass Beads |
| Chemical Index | ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13% | Si02:>65%,Na2O<14.0%
Ca0>8.0%,Mg0>2.5%
Ai203 0.5-2.0% Fe203:0.15
|
|
|
| Vickers Hardness | ≥700 HV | ≥560HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥2.5g/cm3 |
| Bulk Density | ≥2.3g/cm3 | ≥1.5g/cm3 |
| Particle Size | 0.04-0.85mm | 0.045-0.85mm |
| Usage | Blasting Media | Blasting Media |
| Ferrous Contamination | No Ferrous | No Ferrous |
| Dust Pollution | Little | Large |
| Recyclable Times | Multiple | One time or twice |
| Power consumption | Low | Low |
| Service Life | Long | 1/25 of ceramic beads |
| Equipment Wear Rate | Low | Low |
| Blasting Effect | High finish
No discoloration | High finish
White discoloration |
Seen from the above chart,ceramic beads can be recyclable in
multiple times,the service time is
About 25 times longer than the one of glass beads,it has
outstanding advantages in blasting industry.
3. Main Particle Size of Ceramic Bead Blasting Zirconia Sand
| Particle Size |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |

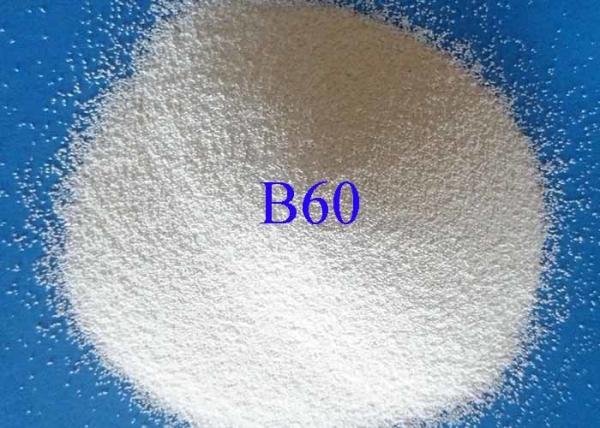

| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
4. Main Applications of Ceramic Bead Blasting Zirconia Sand
Ceramic Beads are available in two grades, one for surface
treatment and the other for shot peening applications
In surface treatment application,ceramic beads is widely used for
surface finish of 3C proudcts, as sureface cleaning
for glass moulding etc.
In shot peening applications, ceramic beads is widely used for
aviation& aerospace and shipbuilding industry for
sandblasting reinforcement as well as in automotive industry.
5. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6. FAQ
Are you direct Manufacturer of Zirconia Ceramic Beads ?
Yes,we are professional manufacturer,equipped with the most
advanced production line and testing
equipment;
Are you able to provide free samples?
Yes, few quantity free sample is avialable.
Could you please name your some clients?
Yes, our clients includes Foxconn, Samsung Electronics etc.
If you have any other questions,please contact me freely.
